SKIRTBOARD SEALING SYSTEMS

At-Last-A-Seal® Sealing System



At-Last-A-Seal® skirt seal takes a new approach to sealing transfer points; they become a part of the chute wall and float on the belt, allowing the conveyed material to apply sealing pressure without excessive drag and friction. At-Last-A-Seal® encapsulates the bottom edge of the chute wall and harmlessly rides on the surface of the belt. This lets the seal ‘float’ and conform to any irregularities and inconsistencies of the belt surface.

Up to 500 ft.-’Floating Seal’-No Splices or Joints-Super Duty Applications

ARCH Environmental Equipment, Inc | Skirtboard Sealing System | At-Last-A-Seal | skirtboard sealing systems
ARCH Environmental Equipment, Inc | Skirtboard Sealing System | Talon Sealing System | skirtboard sealing systems

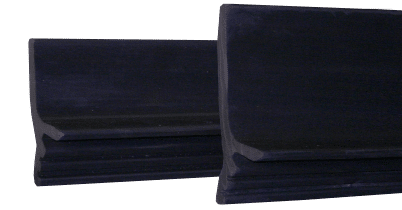

Talon Sealing System



ARCH’s newest innovation in sealing technology, the Talon Seal is as fierce on fugitive dust as its name suggests. The Talon Seal uses a unique design with multiple barriers to contain dust and fines to the belt. The Talon Seal leverages the weight of the load to either increase or decrease the seal-to-belt pressure; heavy loads create more pressure, lighter loads less pressure.

Use With Existing Clamps-Continuous Lengths up to 200’-Minimal Friction

Flexiskirt Sealing System



A mainstay in ARCH’s fight against fugitive dust, Flexiskirt sealing systems utilize directionally grooved rubber to force fines back into the bulk flow.  Recommended for very dry, dusty materials, the Flexiskirt design takes advantage of the rubber’s natural flexibility to seal the belt by conforming to the belt surface. Able to withstand temperatures of up to 150°F, Flexiskirt seal conforms to the belt’s dynamics with minimal friction as it adapts to widening or narrowing gaps between the belt and seal chute wall.

18″ to 120″ Conveyor Belts-Safe for Mechanical Splices

ARCH Environmental Equipment, Inc | Skirtboard Sealing System | Flexiskirt | skirtboard sealing systems
ARCH Environmental Equipment, Inc | Skirtboard Sealing System | Secondary Dust Seal | skirtboard sealing systems

Secondary Dust Seal



Made with rope and weather-resistant EPDM rubber, the ARCH Secondary Dust Seal is installed directly behind the main seal and acts as a safety net to catch what your primary seal doesn’t.  It works in unison with existing skirt rubber to maximize your sealing effectiveness.

Provided in continuous lengths of up to 350’, this supreme secondary seal has no seams or joints and will not leak.
